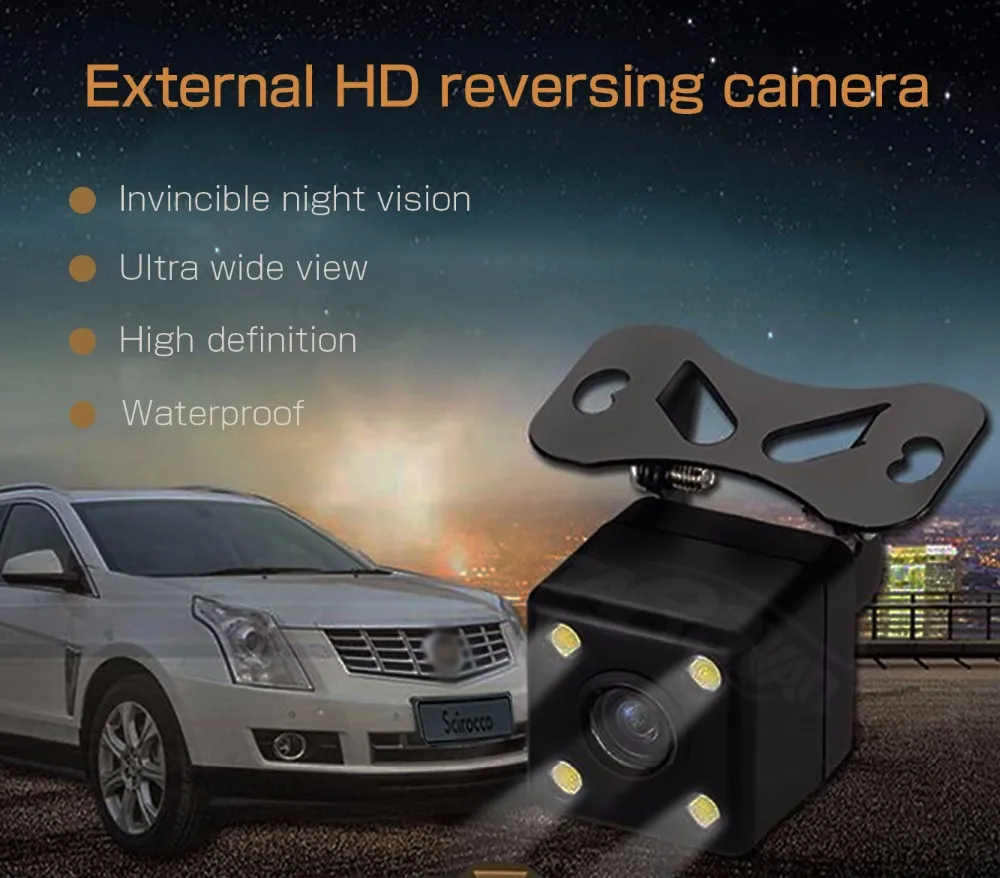

Rear View Camera Night Version 170 Degree Parking Rear Camera LED Light Reverse Camera With Parking Line WDR
Source from:
Features:
1.LED light supplement, super clear night vision;
2. Adopt PC7070 HD COME module, clearer imaging;
3. Adopt 4 lens, viewing angle max to 170 degrees;
4. Professional waterproof, pouring sealant, high-grade waterproof process;
5. Reference rod line, nondestructive installation, without damaging the original vehicle line;
6. Bracket installed, free adjustment;
7. CVBS signal output, compatible with all monitors
Specifications:
1.Resolution: 480 TV Lines
2.System: "PAL" (628*586 pixels 1/50-1/100000sec)
“NTSC” (656*462, pixels, 1/60-1/100000sec)"
3.Voltage: DC12V
4.Minimum illumination: 0.5Lux
5.Storage temperature: -30 ~ +75 degrees
6.Working temperature: -20 ~ +65 degrees
7.Light supplement: LED lighting lamp
8.Waterproof grade: IP67/68
9.Lens angle: 170 degrees
10.Power dissipation: 2W
11.Power interface: DC5.5 female head
12.RCA head for video interface
13. Video output signal: CVBS (1.0Vp-p, 75 Ω)
14.LED lights: 4
15.Light compensation: LED
16.Angle adjustment: around 15 degrees
17.Reference line: digital ruler
18.The ruler line: supports tricolor ruler line
19.Mounting method: screw installation
Packing list
1 x Camera
1 x DC Cable(L=1.5M)
1 x Video Cable(L=6M)
1 x Bag of screws(2*PWA3.0*8)
1 x Manual
